LED Photo Therapy

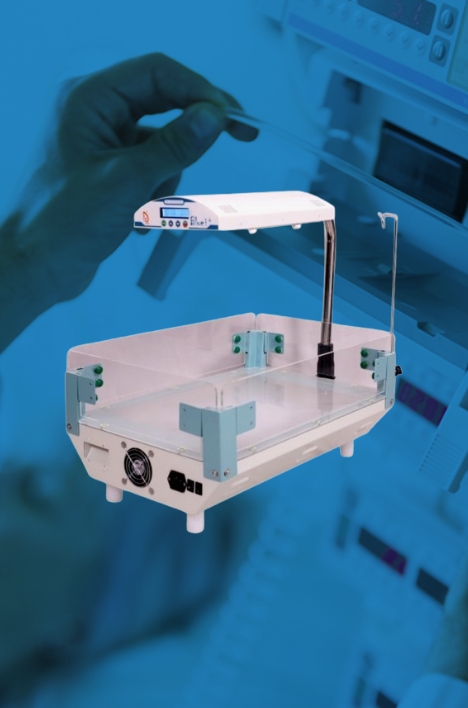

Blue I+ Baby Cradle

Phototherapy is the most frequently used device to treat newborn jaundice babies. 10% of all newborns worldwide require treatment for jaundice to prevent severe brain damage, lifelong disability, and death.

So early recovery of jaundice is required and depends upon the irradiance of light (optimal in the Blue 450–470 nm) exposed on the baby's body surface area and also on the duration of exposure. The most commonly used devices to treat newborn jaundice are fluorescent blue tube convectional lights, halogen lamps, xenon bulbs, and fiber optic blankets. Each of these different device therapies has a number of disadvantages, such as high heat production and unstable wavelength, leading to a decrease in irradiance (approx. 2000 hours maximum). As a result, the device has a very low lifespan and high running cost.

To circumvent this issue, Devay Medical Technologies has developed an innovative long-life (approx. 1,00,000 hours) low-power high-intensity LED-based cool light phototherapy device, which has low running cost and is more efficient. It does not emit Ultraviolet (UV) or Infrared Light, which causes skin damage and hyperthermia. This is a delivery treatment that complies with the American Academy of Pediatrics phototherapy standard — it should be >30 microwatt/cm²/nm.

Specifications

LED Phototherapy Unit Devay Specification Long Life
Meets all Guidelines
Low Power Consumption
Safe & Quick Result
Compact Size
Low Running Cost
Irradiances changeable / set able (Optional)
Specification
Light Source 20 Deep Blue LED in BLUE I
24 Deep Blue LED in BLUE i+
2 White Bright LED for Observation
Dominant Wavelength 450–470nm
Spectral Irradiances BLUE I: 37 to 40 Microwatt/cm²/nm
BLUE i+: 42 to 45 Microwatt/cm²/nm
LED Life 1,00,000 hours low power high intensity based cool light
LCD Display (Model Blue i+) Two Line LCD Display with:
- Dose Setting
- Hours Calculating and Display
- Feed Alarm Setting
- Auto Off after set dose time completed
Power
Power Supply Internal AC Input 230V–240V AC, 50/60Hz, 1Amp
Power Consumption 26 Watts Max.
Housing and Construction
Weight 2.0 Kg Approx (Blue i)
2.3 Kg Approx (Blue i+)
7.0 Kg Approx (Base + Stand)
Dimension Unit: 41 cm (l), 9.5 cm (h), 23 cm (w)
Stand: 70 cm (l), 110 cm (h), 46 cm (w)
Height 110–170 cm
Ground Clearance of Base Stand – 4.0 cm, Trolley – 13.0 cm
Tilt Adjustment +/- 180 Degree
Temperature 1 to 48°C for Operating
Humidity 0 to 97% (Non Condensation)
