LED Photo Therapy
So Early Recovery of Jaundice it required and depends upon irradiance of light (Opmal in the Blue 450-470 nm) exposed on baby body surface area and also dependent duraon of me. The most commonly used to treat new born Jaundice are the fluorescent Blue tube conveconal light, halogen lamp, Xenon bulbs, fiber opc Blanket, each of thesedifferent device therapy has numbers of disadvantages like high heat producon, unstable wave length having decreasing of irradiance (Approx 2000 hrs. maximum), so life of that device is very low and having maximum running cost.
To circumvent this issue we “Devay Medical Technologies” has developed an innovave long life (Approx 1,00,000 hrs.) Low power high intensity LED based cool light phototherapy having low running cost and more efficient. It do not emit Ultraviolet (UV) and Infrared Light with causes skin damage and hyperthermia, Delivery Treatment that complies with the American Academy of Pediatrics phototherapy standard it should be > 30 microwa cm2 nm.

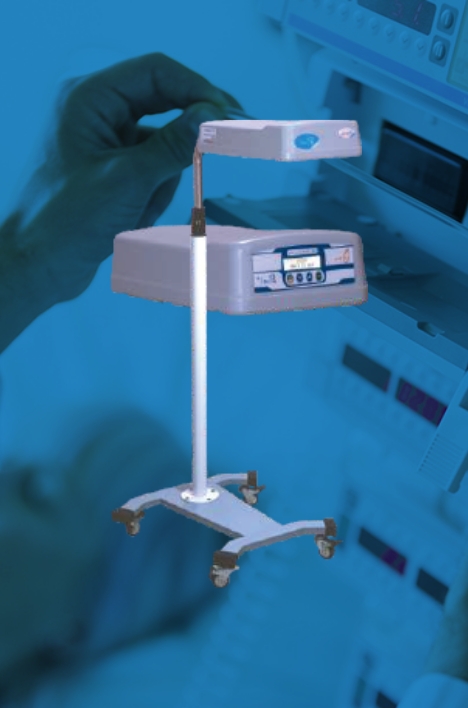

LED Phototherapy Unit
Long Life
Meets all Guidelines
Low Power Consumpon
Safe & Quick Result
Compact Size
Low Running Cost
Irradiance changeable
| LIGHT SOURCE | 20 DEEP BLUE LED IN BLUE i & 24 DEEP BLUE LED IN BLUE i+, 2 WHITE BRIGHT LED FOR OBSERVATION (OPTIONAL) |
| DOMINANT WAVELENGTH | 450-470 NM |
| SPECTRAL IRRADIANCE | BLUE i : 37 TO 40 MICROWATT/CM2/NM BLUE i + : 42 TO 45 MICROWATT/CM2/NM |
| LCD DISPLAY (OPTIONAL) | HAVING TWO LINE LCD DISPLAY FEATURES INCLUDES DOSE SETTING, HOURS CALCULATING & DISPLAY FEED ALARM SETTING, AUTO OFF AFTER SET DOSE |
| ELECTRICAL SPECIFICATION OPERATING VOLTAGE | 230 – 240 V, FREQ 50/60 HZ |
| POWER | 26 WATTS MAXIMUM |
| CONSUMPTION FUSE | 500 MA, 230-240 V, 50/60 HZ |
| SINGLE LED | 1 WATT, 350 MA AND 3.2 VOLT WORKING VOLTAGE |
| ENVIRONMENTAL SPECIFICATION OPERATING TEMPERATURE | 1 TO + 48 DEGREE VOLTAGEE |
| RELATIVE HUMIDITY | 0 TO 97 % (NON CONDENSATION) |
| PHYSICAL SPECIFICATION LED UNIT BOX (H/W/L) | (9.5 * 23 * 41) CM |
| TROLLEY UNIT (H/W/L) | (110*46*70) CM |
| HEIGHT | 110 – 170 CM |
| GROUND CLEARANCE OF BASE | STAND – 4.0 CM, TROLLEY – 13.0 CM |
| STILE ADJUSTMENT | +/- 180 DEGREE |
