Devay

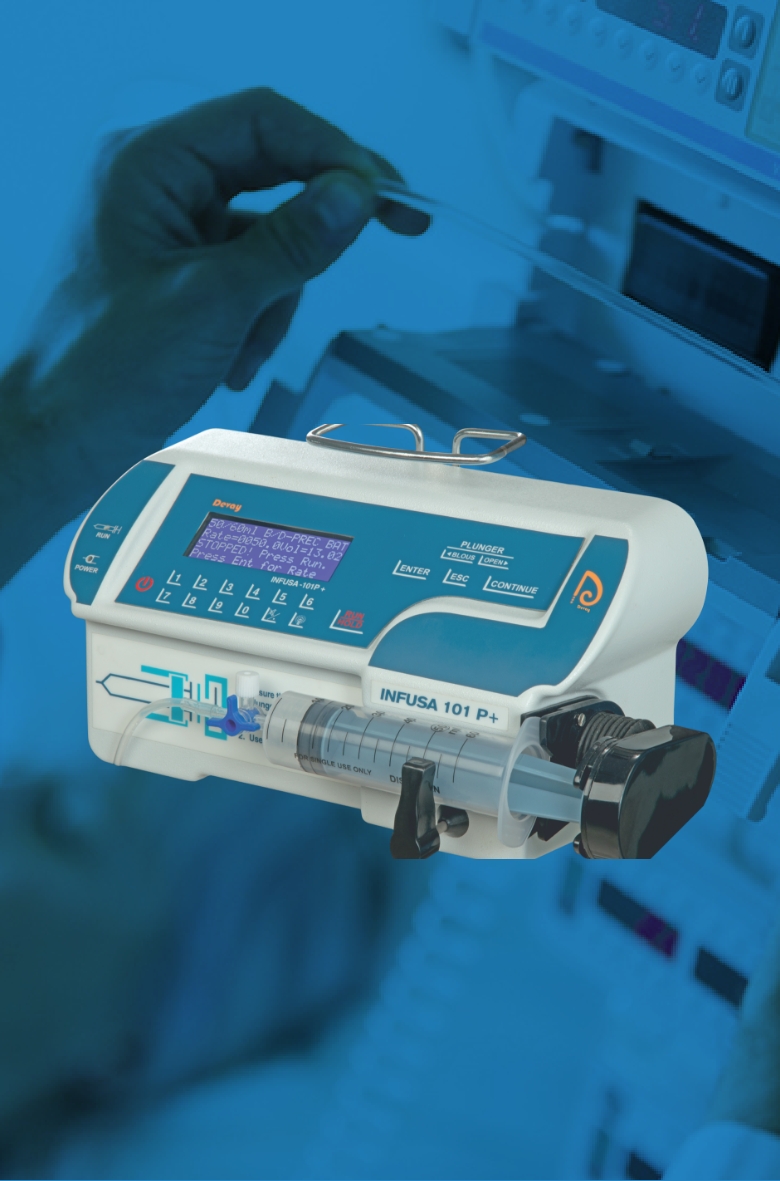

Syringe Infusion Pump

Infusa - 101P+

Front loading with manual plunger opening syringe pump.
Fully Micro Processor Controlled Based System
Automac Syringe size detecon of 5,10,20,50/60 ml.
Portable, Durable, Light Weight, use friendly and easy to operate
Large connuous display of four lines indicates Rate Seng, Volume Infused to Paent drug name with syringe brand and Time Remain
Any brand of Syringe can be calibrated and use
Big LED Display of rate. Three step easy operaon.
User can set bolous program as per paent requirement online or programmable
Last program connue facility
High volumetric accuracy over the enre delivery range
An Bolus funcon acve when occlusion detected. It is helps to release pressure in paent vain.
Wide range of adjustable ow rates from 0.1 ml to 1500ml per hour
Compable with syringe range of 5ml,10ml,20/30ml and 50/60ml
Stand by mode facility available
Ideally suitable for ICU, ICCU, NICU, PICU, OT, Pain Management Treatment

OVERALL ACCURACY	+/ 2% (MEASURED TIME >1 HR; MIN 0.2ML)
FLOW RATE RANGE	0.1 - 50ML/HR FOR 10 ML SYRINGE 0.1 - 100ML/HR FOR 20 ML SYRINGE 0.1 - 120ML/HR FOR 30 ML SYRINGE 0.1 - 1500ML/HR FOR 50/60 ML SYRINGE (ABOVE 200.1 WITH PASSWORD PROTECTED IN HIGH INFUSION)
INFUSION VOLUME LIMIT	60ML, PROGRAMMABLE EVERY 0.1 ML
BOLUS RATE	100ML/HR, 200ML/HR, 500ML/HR AND 1200ML/HR, DEPENDS ON SYRINGE SIZE
OCCLUSION DETECTION & PRESSURE LIMIT	PROGRAMMABLE THREE LEVEL LOW 0.4 +/ 0.08 BAR MEDIUM 0.8 +/ 0.20 BAR HIGH 1.2 +/ 0.25 BAR
KVO RATE	1% OF SELECTED INFUSION RATE BUT MIN 0.1ML/HR
SYRINGE TYPE	USED B I BRAUN-OMNIFIX, B I BRAUN-PERFUSER, BDPRESISE, BD-DISCARDIT, DISPOVAN, ROMSON, NIRLIFE & BRAND OF 5,10,20,30,50,60 ML SYRINGES WITH THEIR DIFFERENT MODELS.
DRUG LIBRARY	50 NUMBERS OF DIFFERENT DRUGS
INDICATORS	ALARMS, RUN AND MAINS
ALARMS	BATTERY, LOW BATTERY, OCCLUSION, NO SYRINGE, 5 MINUTE PRE ALARM, END OF INFUSION, ANTI BOLUS - KVO ACTIVE , WRONG SYRINGE LOADED
POWER SUPPLY INTERNAL	AC INPUT RANGE 110V TO 280 VOLT AC, 50/60HZ
BATTERY	INBUILT SMF NIMH ( SHIELD MAINTENANCE FREE)
BATTERY BACK UP ON OPERATING RANGE	10 TO 12 HRS. UNDER STANDARD CONDITION.
POWER CONSUMPTION	10 WATTS MAX.
HOUSING AND CONSTRUCTION WEIGHT	2.0 KG APPROX.
DIMENSION	290 MM(L), 195 MM(H), 165 MM(W) APPROX
