Devay

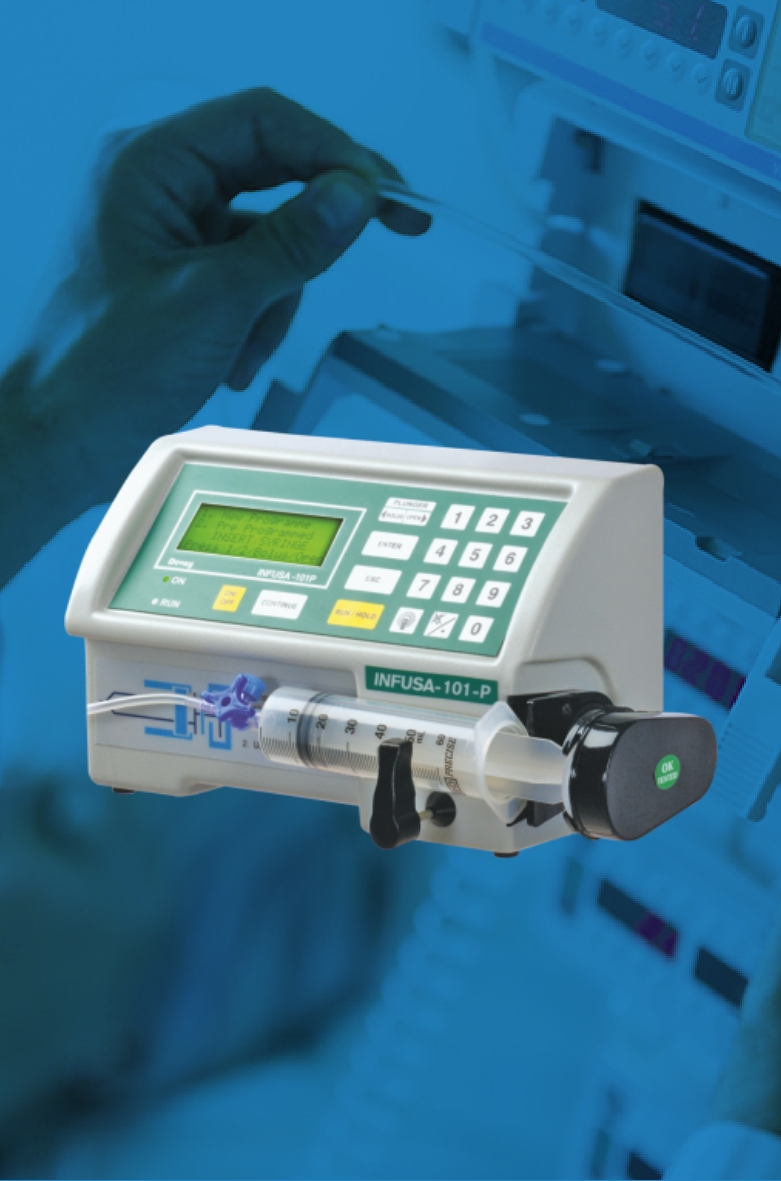

Syringe Infusion Pump

Infusa - 101P

With selectable 3 pre-programmes (editable)
Front loading syringe system
Portable, Durable, Light weight, user friendly and easy to operate
Fully Micro Processor Controlled Based System
Large display of four lines indicates Rate Setting, Volume Infused to Patient and Time Remain (Unique feature)
Help menu facility during setting of pump operation
User can set bolous program as per patient requirement
Infuse Rate can be changed during the process
Last program continue facility
High volumetric accuracy over the entire delivery range
Wide range of adjustable flow rates from 0.1ml to 200ml per hour
Three selected Audio-Visual pressure alarm limits for occlusion
Compatible with syringe range of 10ml, 20/30 ml and 50/60 ml
Pre-Installed syringe directory of different brands of syringes
Very useful for Pain Management Treatment
Stand by mode facility available
With KVO (Keep Vain Open) function (0.1ml/hr minimum)
Ideally suitable for ICU, ICCU, NICU, PICU, OT

OVERALL ACCURACY	+/ 2% (MEASURED TIME >1 HR; MIN 0.2ML)
MEMORY	FOR 3 SELECTED & EDITABLE PROGRAMMES
FLOW RATE RANGE	0.1 -60ML/HR FOR 10 ML SYRINGE 0.1 -100ML/HR FOR 20 ML SYRINGE 0.1 -120ML/HR FOR 30 ML SYRINGE 0.1 -200ML/HR FOR 50/60 ML SYRINGE
INFUSION VOLUME LIMIT	60ML, PROGRAMMABLE EVERY 0.1 ML
BOLUS RATE	UP TO1000 ML/HR
OCCLUSION DETECTION & PRESSURE LIMIT	PROGRAMMABLE THREE LEVEL LOW 0.4 +/ 0.08 BAR MEDIUM 0.8 +/ 0.20 BAR HIGH 1.2 +/ 0.25 BAR
KVO RATE	1% OF SELECTED INFUSION RATE BUT MIN 0.1ML/HR
SYRINGE TYPE	B\|BRAUN-OMNIFIX, B\|BRAUN-PERFUSER, BDPRESISE, BD-DISCARDIT, DISPOVAN, MEDISAFE, ROMSON, HRJ. & TERUMO BRAND OF (10,20,30,50/60 ML) SYRINGES WITH THEIR DIFFERENT MODELS.
INDICATORS	RUN AND MAINS.
ALARMS	BATTERY, LOW BATTERY, OCCLUSION, NO SYRINGE, 5 MINUTE PRE ALARM, END OF INFUSION, KVO.
POWER SUPPLY (EXTERNAL)	AC INPUT RANGE 110V TO 280 VOLT AC, 50/60HZ
BATTERY	INBUILT IMPORTED SMF ( SHIELD MAINTENANCE FREE)
BATTERY BACK UP ON OPERATING RANGE	10 TO 12 HRS. UNDER STANDARD CONDITION.
FUSE	400 MA
POWER CONSUMPTION	10 WATTS MAX.
HOUSING AND CONSTRUCTION WEIGHT	2.0 KG APPROX.
DIMENSION	290 MM(L), 195 MM(H), 165 MM(W) APPROX
