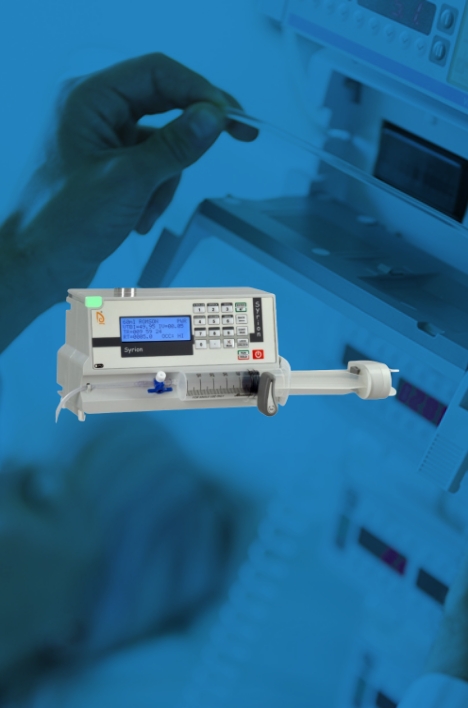

Syringe Infusion Pump
| OVERALL ACCURACY | +/ -2% (Measured Time >1 Hr; Min 0.2ml) |
| APPLICABLE SYRINGE | 5/6ml, 10/12ml, 20/25ml, 50/60ml |
| SYRINGE TYPE USED | B Braun-Omnifix, B Braun-Perfuser, BD-Pressie, BD-Luerlok, BD-Discardit, BD-Plastipak, BD-Emerald, Dispowan, Romson, Nipro & Custom Programmable for Any Brand of Syringe. 5/6, 10/12, 20/25, 50/60 ml Syringes with Their Different Models. |
| FLOW RATE RANGE |
0.1 - 200ml/hr For 5/6 ML Syringe 0.1 - 500ml/hr For 10/12 ML Syringe 0.1 - 800ml/hr For 20/25 ML Syringe 0.1 - 3000ml/hr For 50/60 ML Syringe (Above 200.1 with Password Protected in High Infusion) |
| INFUSION VOLUME LIMIT | 9999ml, Programmable Every 0.1ml |
| AUTO DETECTION | Automatic Syringe size detection of 5, 10, 20, 50 ml |
| DRUG LIBRARY | 50 Number of Different Drugs |
| BOLUS | Purge Bolus & Auto Bolus |
| PURGE BOLUS FLOW RATE |
300ml/hr For 5/6 ML Syringe 500ml/hr For 10/12 ML Syringe 800ml/hr For 20/25 ML Syringe 1500ml/hr For 50/60 ML Syringe |
| AUTO BOLUS FLOW RATE |
0.1 to 300ml/hr For 5/6 ML Syringe (Programmable Rate Set) 0.1 to 500ml/hr For 10/12 ML Syringe (Programmable Rate Set) 0.1 to 800ml/hr For 20/25 ML Syringe (Programmable Rate Set) 0.1 to 1500ml/hr For 50/60 ML Syringe (Programmable Rate Set) |
| OCCLUSION PRESSURE | High Mode, Medium Mode, Low Mode / No Occlusion |
| ANTI-BOLUS FUNCTION | Available, Automatic pressure reduce in Drug Line by Anti Bolus when Occlusion Alarm Occurs |
| KVO RATE | Min 0.1ml/hr to 1% of Selected Infusion Rate up to 5ml/hr |
| AUDIBLE AND VISUAL ALARMS |
‘Red’ indicator is flashing on the top of pump when any alarm occurred. - Connect Power - Low Battery - Check Syringe - Drive Disengage - Occlusion – Anti Bolus – KVO Active - Near END of Infusion - Infusion Completed or End of Infusion - Insert Syringe - Pre Occlusion Detected - Bolus Active - Stand By (Hold) |
| DISPLAY | 20*4 LCD Indicates Rate, Infused Volume, Time Remain, Drug Name, Syringe Size, Syringe Name, Occlusion, VTBI, Power Mode. 4 Seven Segment Display indicates Rate (in big font) |
| POWER |
AC Input Range 110 Volt to 280 Volt AC, 50/60Hz Battery: SMF Rechargeable / Lithium-Iron 7.4V 2000mAh Battery Charging Time: Lithium – Iron Standard 06 Hr @ 5ml/hr Battery Operating: Lithium – Iron 6-8hr @ 5ml/Hr (Optional) Power Consumption: 10 Watts Max. |
| HOUSING AND CONSTRUCTION |
Weight: 1.6 Kg Approx. Dimensions: 215 mm (l), 120 mm (h), 115 mm (w) Approx. Temperature: 0 to 48°C for Operating / -10 to 60°C for Storage Humidity: 20 to 75% for Operating / 15 to 100% for Storage Air Pressure: 50 to 100kPa for Operating / 40 to 110kPa for Storage Enclosure Housing Protected against water ingress. |
| NOISE (DBA) | <50 dB |
| INTERFACE | RS485 (Optional) |
| STANDARD AND TEST CERTIFICATION | IEC Certification |
| QUALITY STANDARD | ISO 13485 : 2016 |
| FUSE TYPE | 220V 2 x 2 Amp |
